Micro-spot welding monitoring system

Model WEMS-3000, WEMS-3000N

System overview
- Quality estimation is performed by real-time monitoring of current, voltage, pressure, welding time, and other parameters in the welding machine and electrode during welding.
- Utilization in optimal process management is possible through the storage and analysis of welding quality data in the battery production process

Key functionsand features

  • Welding quality estimation (OK / NG) through upper and lower limit management for each process and quality variable.
  • Real-time monitoring for weld quality estimation of unwelded, excessive welding, and weak welding in the resistance welding process.
  • Convenient for precise data analysis and management with a sampling frequency of 50 kHz per channel.
  • Can be extended to support CAN 2.0 for slip ring (rotary equipment) environments.
  • Transmission of NG signals is possible through customer PLC communication integration.

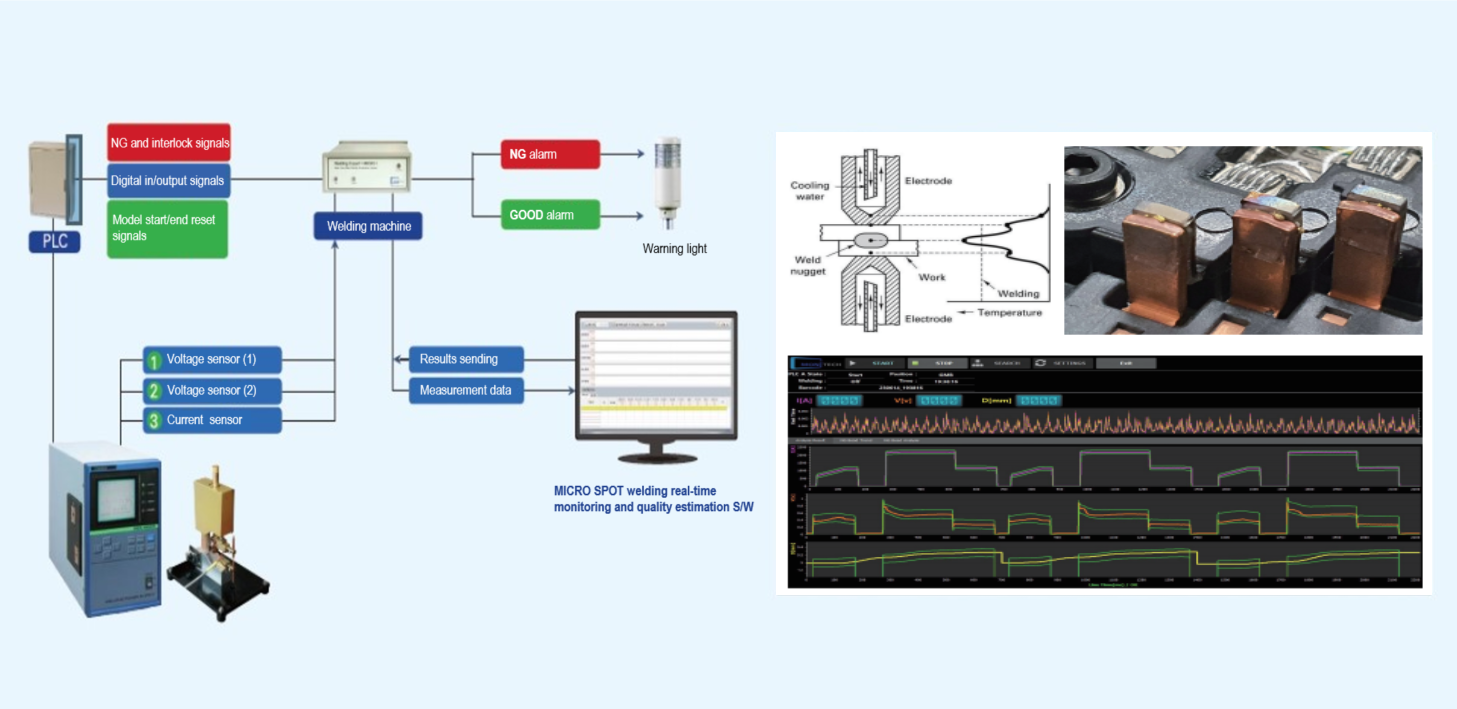

Systemconfiguration diagram
