MONITECH

Laser welding monitoring system

Model WELW-2000

System overview
- Measuring various wavelengths, including plasma and infrared emissions during laser welding, for real-time welding quality and process control
- Providing a configuration of proven measurement sensors and optical systems based on years of experience in various production facilities

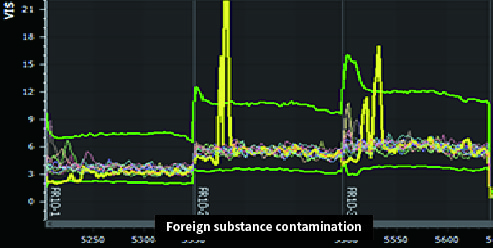

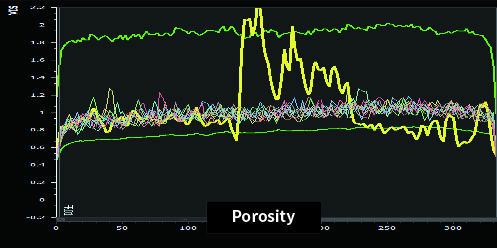

- Determining welding defects by comparing real-time measured data patterns with quality estimation criteria patterns

Video

Key features
and specifications

  • (Customizable development available) Providing an optimized solution tailored to the customer's process characteristics.
  • (Quality improvement) Analyzing and determining welding process and quality issues in real-time.
  • (Risk Range management) Automatic storage of defective data enables future analysis and defective product tracking.
  • (Productivity improvement) In fields where welding processes and conditions change frequently, welding process optimization is achievable through trend management.
  • (Production performance enhancement) Quality issues can be improved through the management of welding defects by type

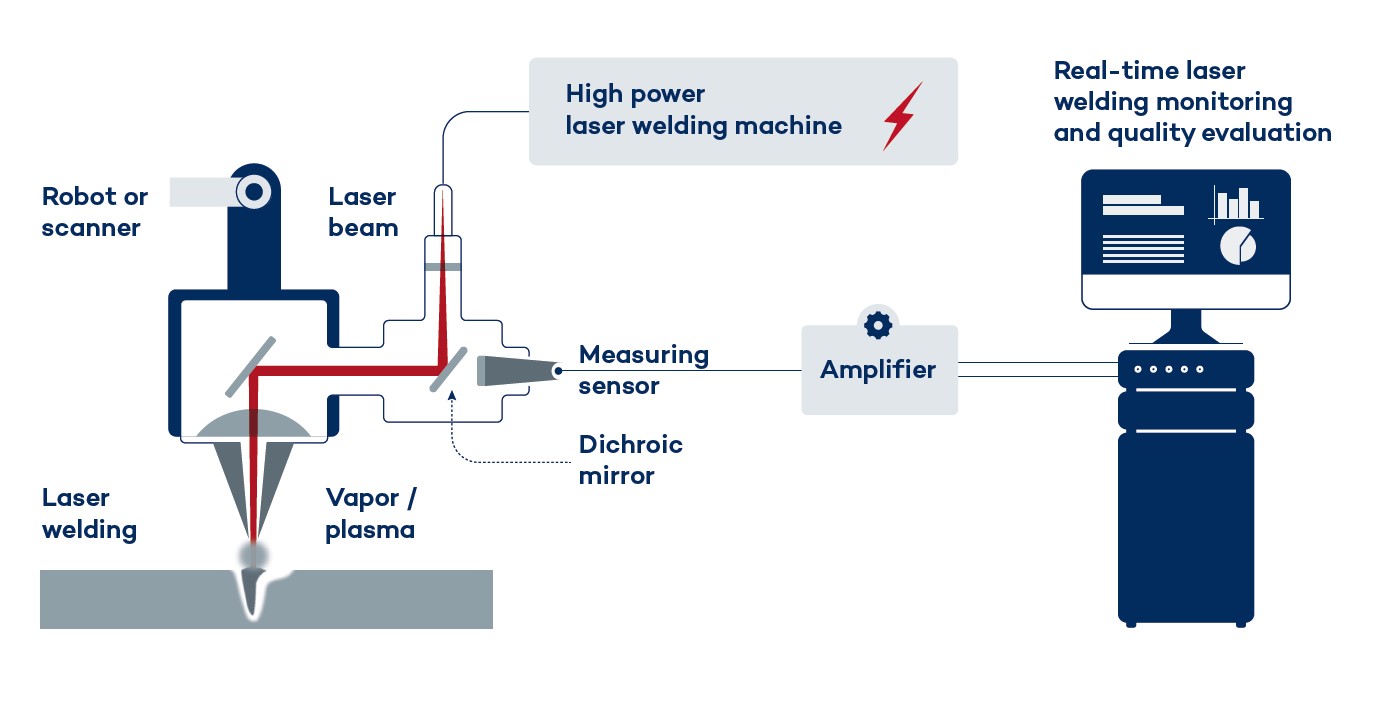

System configuration diagram
