Portable measuring devices for ARC & SPOT welding

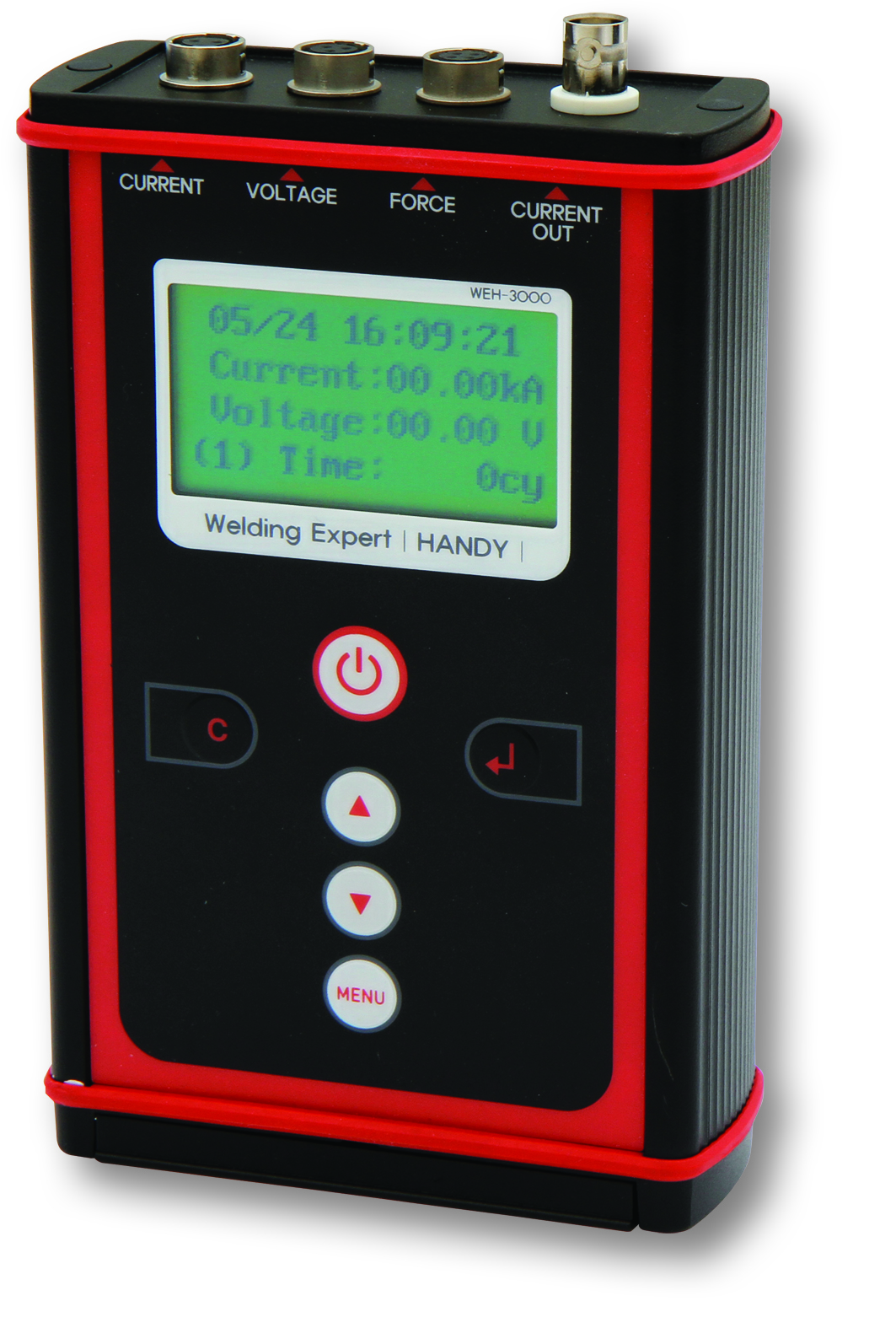

Model WEH-3000

System overview
- Essential equipment for welding process management in the manufacturing of automotive components and electronic products.
- Collects and analyzes data on welding results.
- Periodic check and management of the actual output of welding equipment are effective.
- Can be used as a self-calibration device for welding machines.
-Necessary equipment for 5-star and SQ assessments.

Video

Key functionsand features

  • (ARC Welding) Current, voltage, (SPOT Welding) current, voltage, pressure sensors are provided together.

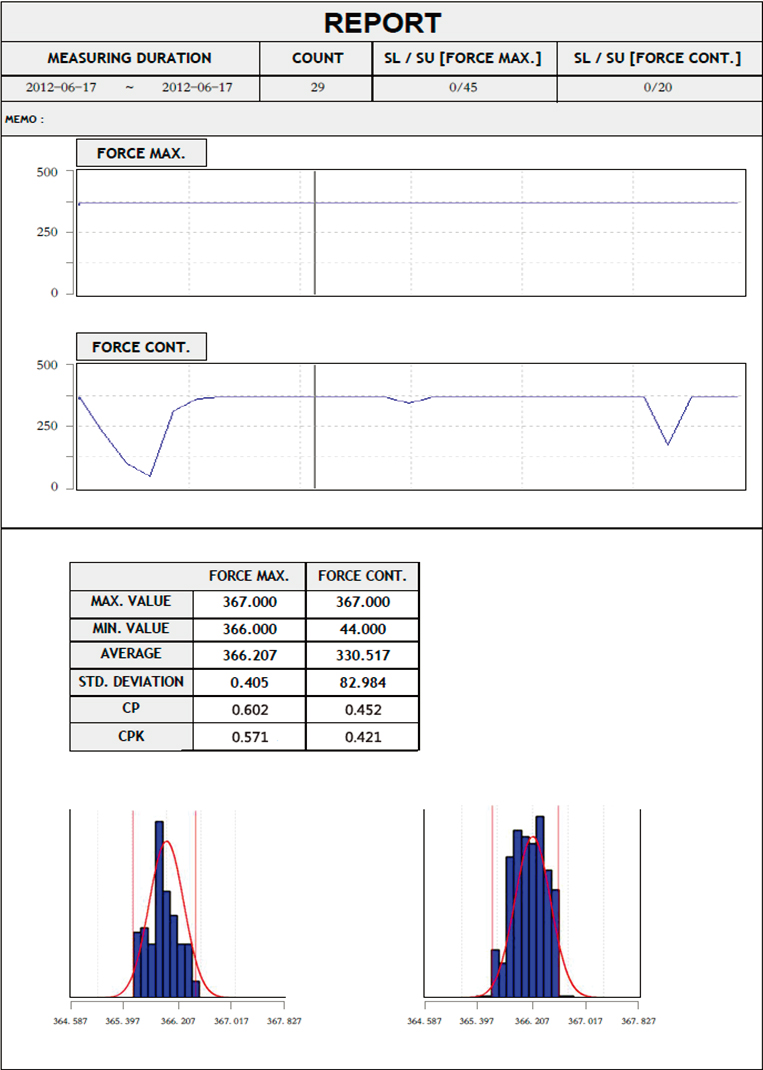

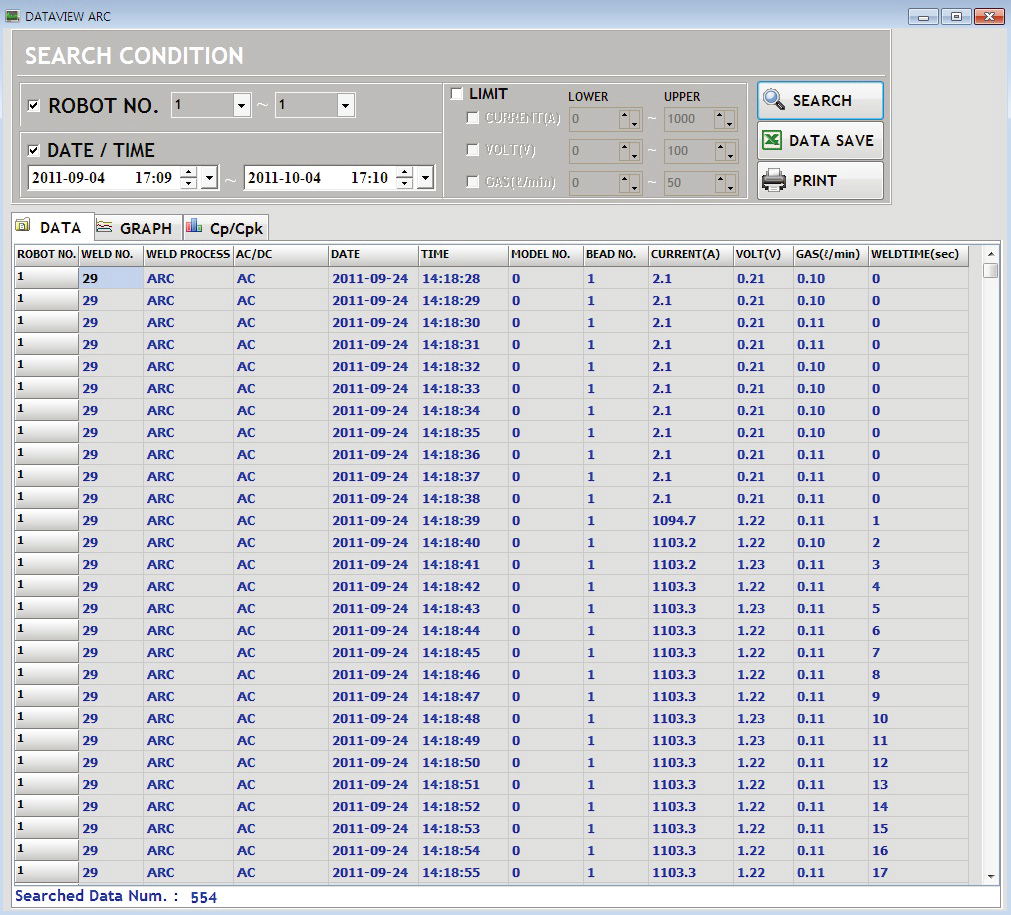

  • Program provided for managing and analyzing measurement result data.
  • Capable of measuring AC, 3-phase rectifier DC, inverter DC, and capacitor DC.
  • Provides measured values for each pass in multi-pass welding.
  • Built-in SD card and self-data storage function.
  • Various features including deletion of pressure initial stage, peak and average measurement within the calculation range

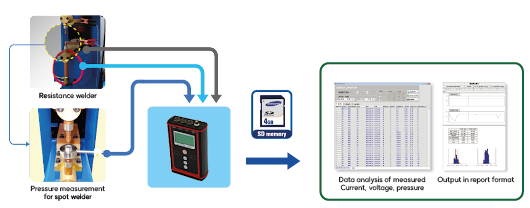

Systemconfiguration diagram
