MONITECH

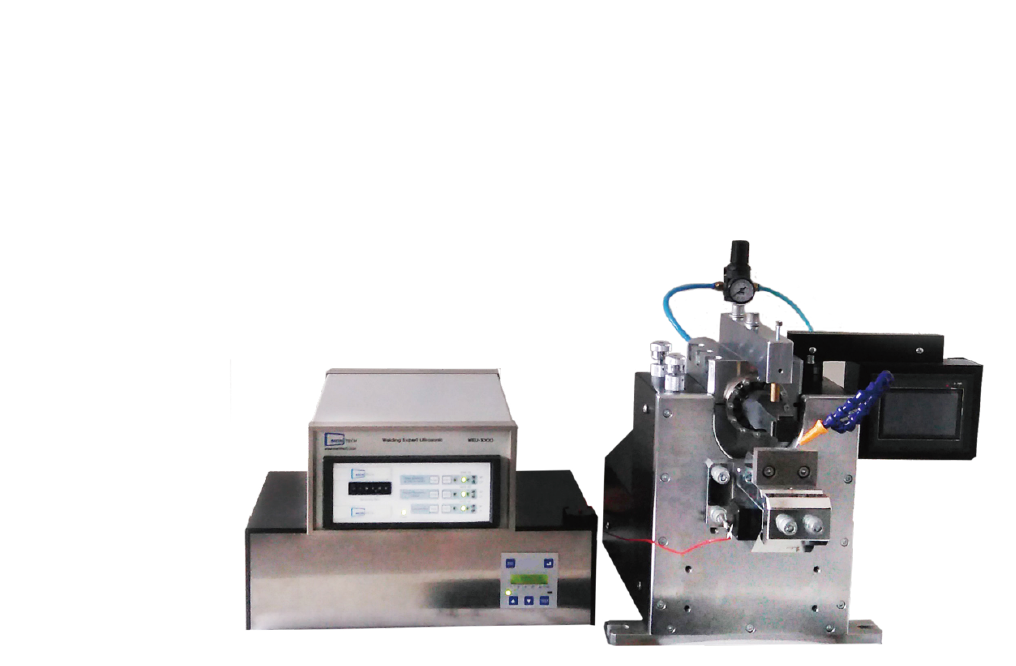

Ultrasonic welding monitoring system

Model WEU-1000

System overview
- The world's first commercialized ultrasonic welding and quality estimation system.
- Measures frictional vibrations between the horn and anvil during welding to determine the quality of the weld.
- Extracts features related to weld quality from measured vibration data for quality defect detection.

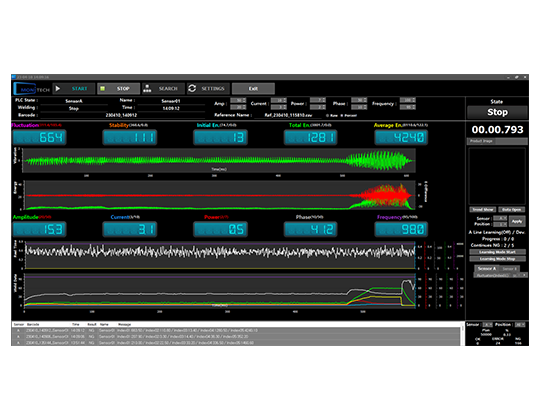

- Real-time monitoring of ultrasonic welding process variables (amplitude, current, etc.) for ultrasonic welders (when welding machine communication is supported)

Video

Key functionsand features

  • Providing customized solutions tailored to customer process characteristics.
  • Algorithmizing the experience of expert welders for real-time management software integration.
  • Highly intuitive sensor installation and user-settable initial conditions when changing materials.
  • High-reliability quality estimation through artificial intelligence algorithms.
  • Applying process preventive maintenance indices based on various data analysis results

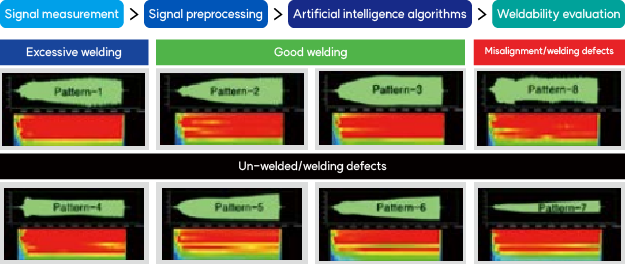

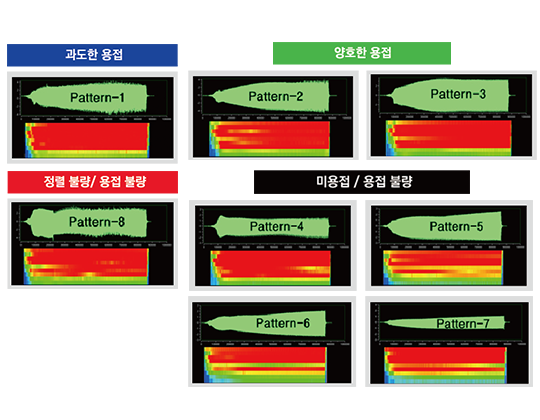

Weld qualityestimation method
